FAAC CYCLO 24V 105999144 Sliding gate motor + rack

For wide sliding gates up to 15m, FAAC offers you its Cyclo kit to automate it. The system supports leafs up to 400 Kg for domestic use. It includes an anti-crushing device and a virtual encoder.

• Total or partial (pedestrian) opening possible adjustable from 0 to 98%.
• Test report carried out with the CSTB certifying its conformity to the European standard.
• Ready connect with the E721 card providing the information necessary for home automation management.
• Unlocking by means of a custom key cylinder.
• Bus orientable photocells, 2-wire connection without polarity, with possibility of 180° orientation.
• Max gate weight 400Kg.
• Residential use.
• New principle of reduction with mobile axes (FAAC patent).
• Electronic control output with anti-crushing device and virtual encoder with obstacle reversal function.
• Master/Slave function via Bus to operate two motors simultaneously.
• Autonomy in case of power failure (battery optional).
• Thrust : 32 daN, opening speed from 8 to 18 m per minute.

+ Detection of limit switches and slow-down points is fully automatic
+ Magnetic limit switches are maintenance-free (no need to remove stuck leaves)
+ Thanks to the principle of reduction with moving axes, a patent developed by FAAC, it is possible to achieve up to 80% mechanical efficiency, a higher value than traditional reductions
+ In addition to being easily programmable via an LCD screen, it has an anti-crushing device and a virtual encoder with obstacle reversal function
+ The ideal dimensions have been designed to ensure that all the mechanics are perfectly integrated into the housing and that the electrical components are highly protected

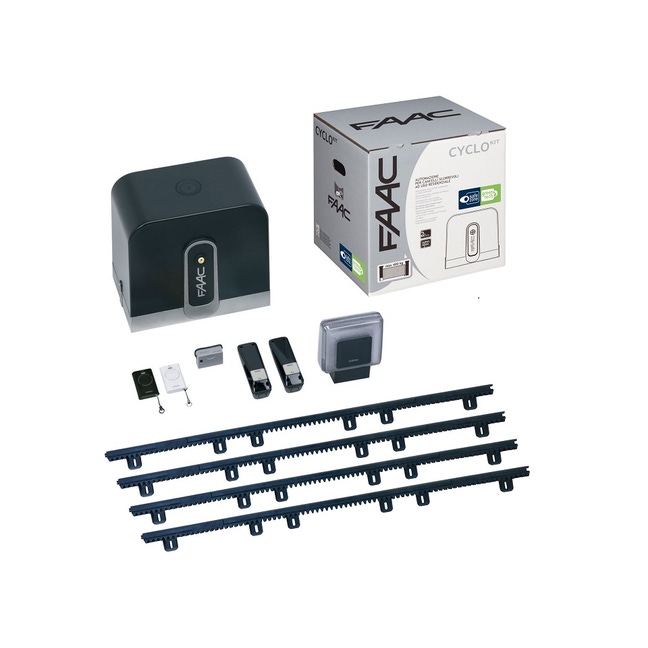

• 2 Transmitters 4 channels 868MHz (XT4SLH)
• 1 Geared motor 24V with built-in electronic board and foundation plate (C720)
• 1 Pair of photocells (XP15B)
• 1 Frequency module (XF868)
• 1 Flashing lamp 24Vdc (FAACLIGHT)
• 4 m of rack
