Motor CAME Krono U1641 for double swing gates
Sku :
Came-Krono-U1641/1
See characteristics
Special Price £809.90 Regular Price £1,620.00 -50%
Save £810.10 (-50%)
Pay in 4x £202.48 without fees
Motorisation portail 2 battants - CAME - Kit Krono - U1641
Automatisme au design soigné, revêtement en Aluminium
Garantie 3 ans
Description
Product description
- If you want to combine efficiency and design in a device for opening and closing your gate, consider the CAME - KRONO - U1641 2-leaf gate motorisation kit from the Italian brand CAME.
- This product has a neat appearance and a robust mechanism that can support your leaves up to 800kg and up to 3m per leaf.
- Its 230V power supply guarantees optimal performance
+ product advantage
- Careful design, aluminium cladding
- Easily accessible release system (on the motor only) for manual opening and closing of the gate in the event of a power failure.

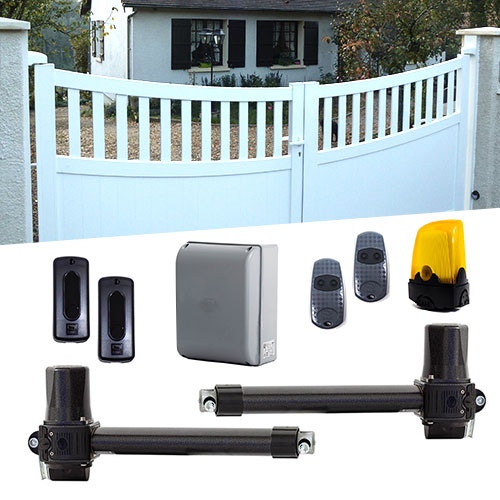

KIT CONTENTS
- 1 irreversible right-hand gearmotor for leaves up to 3m with built-in leaf-stop micro-switches - KR312D
- 1 irreversible left-hand gearmotor for leaves up to 3m with built-in leaf stop micro-switches - KR312S
- 1 Multifunction control unit with built-in radio decoding - 002ZA3N
- 1 Plug-in radio card in 433.92 MHz - AF43S
- 1 SET OF SAFETY CELLS (range 10 metres) (DIR10)
- 1 Orange flashing light (KLED)
- 1 Blinker bracket for wall mounting (KIAROS)
- 2 TELECOMMANDS TOP-432EV 433.92 Mhz, 2 FUNCTIONS
- 1 ANTENNA (TOP-A433N) 433.92 Mhz WITH 5m COAXIAL CABLE (TOP-RG58)
- 1 INSTALLATION MANUAL, MOUNTING ACCESSORIES and WARRANTY
3 year warranty
Technical features
Rated power (W)
130
Thrust (N)
400 ÷ 3000
Opening time at 90° (s)
22 34
Protection degree
IP54
Opening time at 90° (s)
18
Functional temp.
(°C) -20 ÷ +55
Cabinet power supply (V)
230 A.C. 50/60 Hz
Motor power supply (V
230V A.C. 50/60Hz
Absorption (A)
1
Warranties
This product has a warranty period of 3 Year provided that it is assembled and installed in accordance with the instructions for use and that it is used under normal conditions
Simply contact us for an initial diagnosis and we will assist you until a possible malfunction is completely resolved in perfect intermediary.
Our after-sales service centre located at 10 Rue de la Garenne, 27950 ST MARCEL is the point of entry to diagnose the breakdown more precisely, to send back and follow up, if necessary, the product to the manufacturer's network, to check on the good repair and to send back the goods to you. Apart from the shipping costs, we will pay all the transport costs incurred in order to have your product repaired and sent back to you.
Naturally, your guarantee will be extended by the number of days during which this intervention will have taken place.
