Description

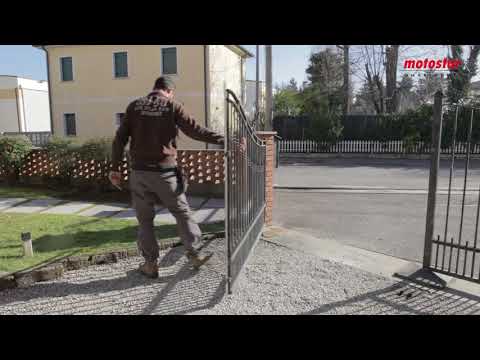

let tim show you everything you need to know about the stylestar
Product description:
- Cylinder motor
- Descreet swing gate engine
- Professional quality, Italian manufactured
- Designed for intensive use
- Simple to install in just a few minutes
- Equipped with a traditional 24v worm geared motor
- Meets European standards (encoder force control)
- Unlocking panel easily accessible in the event of power failure
- Self-diagnosis of safety devices
- Obstacle detection
- Complete or partial stop
- Single door opening for pedestrian access
- Delay opening 1st leaf / Delay close 2nd leaf
- Slow opening and/or closing phase
- Operation by emergency battery (additional option)
Advantages:
- StyleStar, a complete automation kit giving you unprecedented comfort
- Control of the movement: By means of an encoder to have an easy management of the movement and the speed of the operation.
- Simplified installation: With just a single cable with three conductors for the management of the power supply of the automation.
- Design & robustness: Great attention to detail, the aluminium casing makes the Stylestar extremely robust.
- 24v motor: Automatically recognises a possible power failure and activates the backup battery (optional extra), in order to always have the posibility to open and close your gate.
- Obstacle detection: A particular electronic circuit constantly monitors the operation of the gate, causing the movement of the automation to stop or reverse in the event contact with an obstacle.

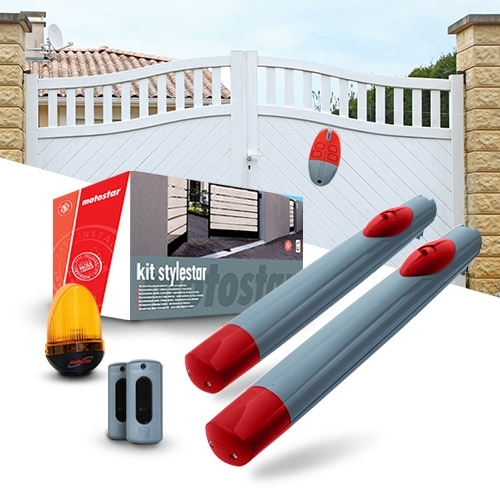

The kit includes:
- 2 STYLESTAR electromechanical locking geared motors with encoder
- 1 CLICKSTAR remote control (433.92 Mhz)
- 1 pair of INFRASTAR photocells (10 m reach)
- 1 LUMISTAR flashing light (includes a wall fixing support)
- 1 Installation and user manual
3-Year manufacturer guarantee
Downloads
Warranty
This product is guaranteed by the MOTOSTAR brand network for a period of 3 years subject to assembly and installation in accordance with the instructions for use and use under normal conditions
Features
Power (W) : 100
Speed at 90° (s) : adjustable
Duty cycle (%) : intensive service
Protection rating : IP44
Operating temperature (°C) : -20 ÷ +55
Thrust (N) : 400 ÷ 2000
Power supply (V) : 230 A.C. 50/60 Hz
Motor power supply (V) : 24 D.C.
Motor maximum draw (A) : 4 max
